Product Overview
Revolutionary Full Color Micro-Display Solution

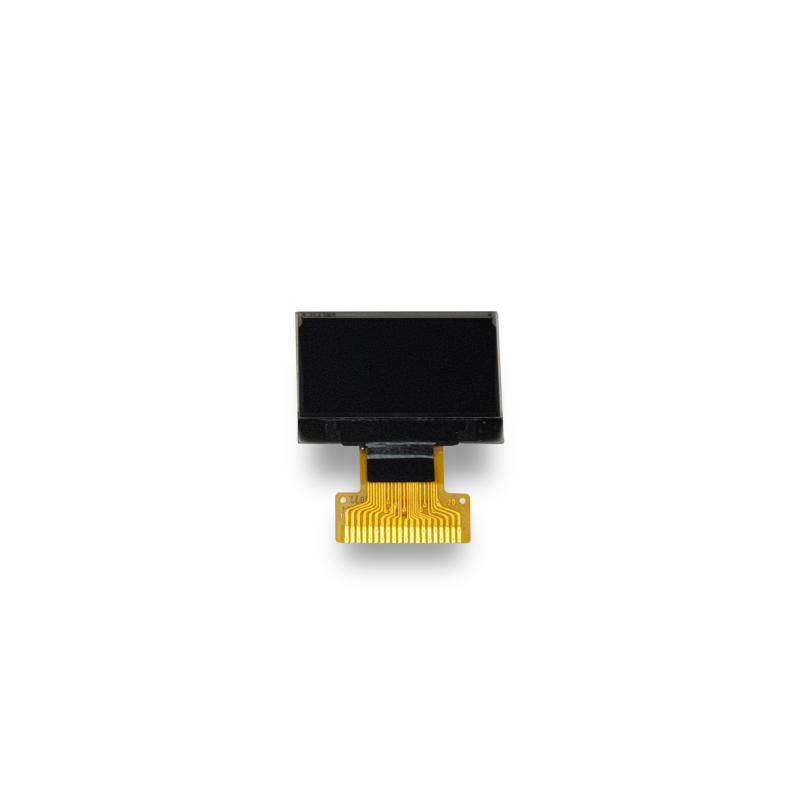

The 0.95″ RGB OLED Display Module breaks the boundaries of miniature display technology with its stunning full-color 96×64 resolution in an incredibly compact 25.7×22.2mm footprint. Featuring the advanced SSD1331Z controller with both Parallel and SPI interfaces, this display delivers vibrant RGB colors, lightning-fast response times, and professional-grade performance perfect for next-generation wearables, premium IoT devices, and cutting-edge consumer electronics.
🌈 COLOR DISPLAY REVOLUTION:
- ✅ Full RGB Color Support – 65K colors for vibrant displays
- ✅ Dual Interface Options – Parallel & SPI for maximum flexibility
- ✅ SSD1331Z Controller – Professional color display processor
- ✅ Ultra-Compact Size – Only 25.7×22.2mm footprint
- ✅ Wide Temperature Range – -40°C to +80°C extreme operation
- ✅ Immediate Stock – Ready for color innovation projects
Technical Specifications
| Specification | Details |
|---|---|
| Display Technology | Active Matrix RGB OLED |
| Display Format | 96 × 64 color pixels |
| Color Depth | 65,536 colors (16-bit RGB) |
| Diagonal Size | 0.95 inches (Perfect Miniature Size) |
| Controller IC | SSD1331Z (Professional Color Controller) |
| Interface | Parallel (8-bit) & SPI (4-wire) |
| Connection | High-Flexibility FPC |
| Pixel Configuration | RGB Stripe with True Color |
| Viewing Direction | 180° All-Angle (OLED Advantage) |
| Power Supply | 3.0V (Optimized for Portable Devices) |
| Operating Temperature | -40°C to +80°C (Industrial Grade) |
| Storage Temperature | -45°C to +85°C |
| Outline Dimensions | 25.70(W) × 22.20(H) × 1.30(T) mm |
| Visual Area | 22.14 × 15.42 mm |
| Active Area | 20.14 × 13.42 mm (Color Display Zone) |
| Pixel Size | 0.19 × 0.19 mm (High Density) |
| Pixel Pitch | 0.21 × 0.21 mm |
| Module Thickness | Ultra-Slim 1.30mm |
| Current Consumption | Color Mode: <40mA, Mono Mode: <20mA |
| Interface Speed | Parallel: 8MHz, SPI: 20MHz |
| Pixel Density | ~120 PPI (Pixels Per Inch) |
| Contrast Ratio | ∞:1 (Perfect Black OLED Technology) |
| Response Time | <0.01ms (Microsecond Color Response) |
| Color Gamut | Wide Color Spectrum Coverage |
| Refresh Rate | Up to 60Hz (Smooth Animation) |
| Compliance | RoHS Compliant |
Key Features
1. Revolutionary RGB OLED Technology
- Full 65K Color Support: Vibrant RGB display in miniature format
- Self-Emissive Color Pixels: Each RGB pixel emits its own light
- Infinite Contrast Ratio: True blacks for stunning color depth
- Ultra-Fast Color Response: <0.01ms eliminates all color smearing
- 180° Color Viewing: Consistent color from any angle
2. Professional Dual Interface System
- Parallel Interface: 8-bit high-speed for complex graphics and video
- SPI Interface: 4-wire efficient communication for space-constrained designs
- SSD1331Z Controller: Advanced color processing and management
- Flexible Configuration: Switch between interfaces as needed
- Optimized Performance: Hardware acceleration for color operations
3. Ultra-Compact Color Design
- Miniature Footprint: 25.7×22.2mm fits in palm-sized devices
- High Pixel Density: 120 PPI for sharp color images
- Ultra-Thin Profile: 1.3mm enables revolutionary slim products
- Optimized Aspect Ratio: 3:2 perfect for icons and color graphics
- Lightweight Construction: <2 grams for wearable applications
4. Extreme Performance Capabilities
- Widest Temperature Range: -40°C to +80°C for harsh environments
- Low Power Color Modes: Optimized for battery-powered devices
- High Brightness Options: 200+ cd/m² for outdoor visibility
- Rugged Construction: Shock and vibration resistant
- Extended Color Life: 15,000+ hours color stability
RGB OLED vs Monochrome: Color Revolution
🎨 COLOR ADVANTAGES:
- Visual Impact: Full color vs monochrome (Infinitely more engaging)
- Information Density: Color coding increases data comprehension
- User Experience: Modern, premium appearance
- Application Range: Games, media, advanced interfaces
- Market Appeal: Higher perceived value and functionality
⚡ PERFORMANCE SUPERIORITY:
- Response Time: 0.01ms vs LCD 20ms (2000x faster)
- Viewing Angle: 180° vs 70° (Complete visibility)
- Contrast Ratio: ∞:1 vs 1000:1 (Infinite improvement)
- Power Efficiency: Pixel-level control vs backlight waste
- Form Factor: 1.3mm vs 3.5mm (2.7x thinner)
Target Applications
🎮 Premium Wearable Technology
- Smartwatch color displays
- Fitness tracker color interfaces
- AR/VR micro-displays
- Premium wearable notifications
⚕️ Advanced Medical Devices
- Portable diagnostic color screens
- Medical imaging preview displays
- Patient monitoring color interfaces
- Healthcare device status indicators
📱 Next-Gen Consumer Electronics
- Bluetooth earbud color displays
- Smart home controller screens
- Portable gaming device displays
- Premium audio equipment interfaces
🚀 Cutting-Edge IoT Devices
- Smart sensor color displays
- IoT hub status screens
- Environmental monitor interfaces
- Advanced control panel displays
🔬 Professional Instrumentation
- Portable test equipment displays
- Scientific instrument interfaces
- Data visualization screens
- Professional measurement tools
