📊 PRODUCT OVERVIEW

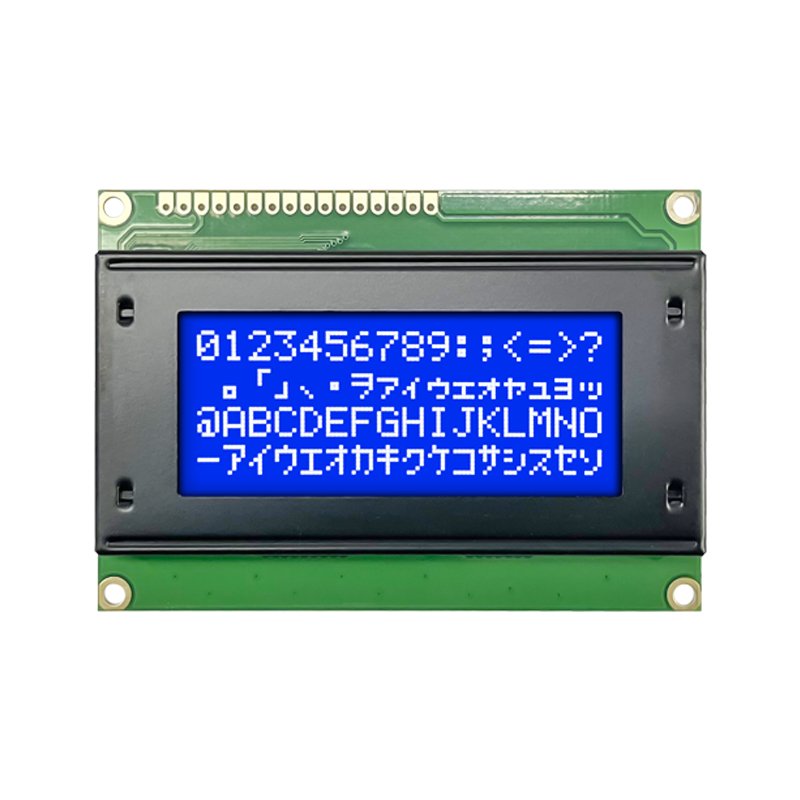

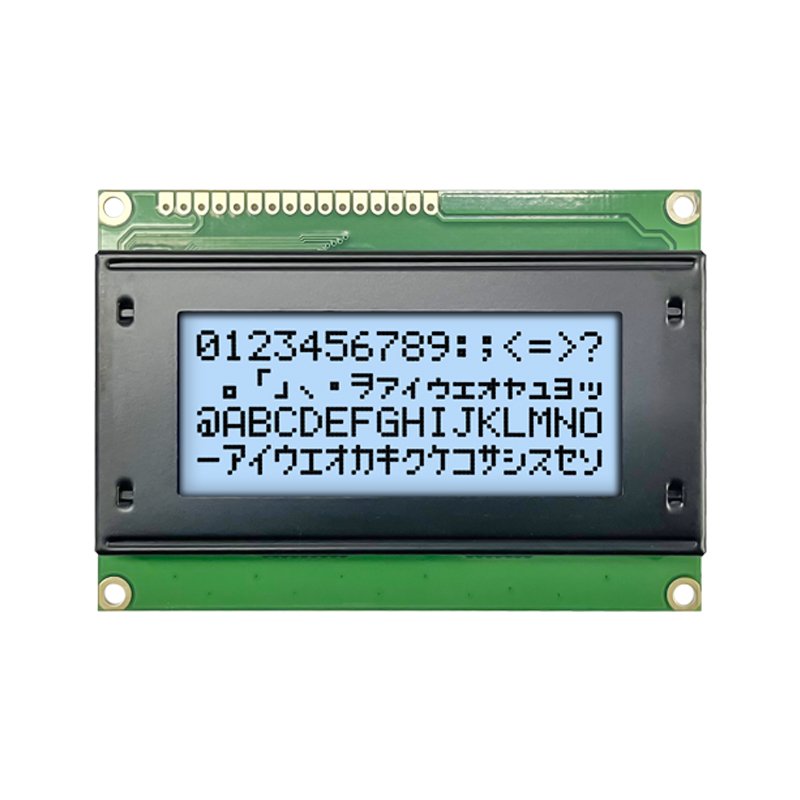

Industrial 16×4 Character LCD Display Module
Thermstars presents the professional-grade 16×4 Character LCD Display Module designed for demanding industrial applications. With 64-character display capacity, this module provides ample space for complex data display, system parameters, and comprehensive interface information.
Key Features:
- High Capacity Display: 16 characters × 4 lines (64 total characters)
- Dual Backlight Options: White LED or Yellow-Green for different application needs
- Wide Temperature Range: -20°C to +70°C operation for industrial environments
- Optimal Viewing: 6:00/12:00 viewing angle for panel mounting
- Flexible Power: 3.3V or 5V selectable voltage operation
- Industrial Reliability: Built for 24/7 operation in harsh conditions
| Manufacturer | Thermstars |
| Part Number | TSDCB1604-01 |
| Display Format | 16×4 Character |
| Interface | 6800 4-bit / 8-bit Parallel |
| IC or Equivalent | ST7066U AIP31066 HD44780 SPLC780D |
| Connection | Pin Header |
| Outline Dimension | 87.00(W)x60.00(H)x12.50(T)mm |
| Viewing Area | 62.00×25.50mm |
| Active Area | 56.20×20.80mm |
| Character Size | 2.95×4.75mm |
| IC Package | COB |
| Display Type | FSTN /STN. Gray/Yellow-Green/Blue |
| Viewing Direction | 6:00/12:00 |
| Power Supply(Typ) | 3.3V/ 5.0V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
Why Choose 16×4 Format?
- Maximum Information Display: Show complex data without scrolling
- Professional Interface: Clean, organized presentation of multiple parameters
- Enhanced User Experience: Complete information at a glance
- Space Efficient: High information density in standard footprint
🏭 INDUSTRY APPLICATIONS & SOLUTIONS
Target Applications:
Advanced Metering Systems:
- Smart electricity meters (KWH Meters) with detailed consumption data
- Advanced energy monitoring systems with multiple parameter display
- Multi-utility meters (water, gas, electricity) with comprehensive readouts
- Industrial flow meters with extended data logging display
- [View Metering Solutions Portfolio]
Industrial Control & Automation:
- Complex pump controllers with multiple parameter monitoring
- Process control panels with extensive system status display
- Factory automation interfaces with detailed operation data
- Equipment monitoring systems with comprehensive diagnostics
- [Industrial Automation Displays]
Retail & Commercial Systems:
- Advanced POS systems with detailed transaction information
- Fuel dispenser interfaces with pricing and volume data
- Vending machines with inventory and selection displays
- Kiosk systems with comprehensive information presentation
- [Commercial Equipment Solutions]
Power Management Systems:
- UPS status displays with detailed system parameters
- Inverter control panels with comprehensive operation data
- Power quality monitoring with multiple measurement displays
- Battery management systems with detailed status information
- [Power Management Displays]
Test & Measurement Equipment:
- Multi-function meters with extensive parameter display
- Laboratory instruments with comprehensive data presentation
- Data acquisition systems with multiple channel monitoring
- Calibration equipment with detailed measurement data
Why 16×4 LCD for Your Application?
- Complete Information Display: Show all necessary parameters simultaneously
- Reduced Menu Navigation: Minimize user interface complexity
- Professional Appearance: High-density display for premium products
- Enhanced Functionality: Support complex operations with clear feedback
- Future-Proof Design: Accommodate additional features without hardware changes
🚀 TECHNICAL SPECIFICATIONS
Detailed Specifications:
Display Characteristics:
- Display Format: 16 characters × 4 lines
- Character Structure: 5 × 8 dot matrix
- Viewing Area: Customizable per application requirements
- Viewing Direction: 6:00/12:00 optimal for panel mounting
- Display Type: Monochrome character LCD
Electrical Specifications:
- Supply Voltage: 3.3V or 5V selectable
- Operating Current: Optimized for low power consumption
- Interface: Standard parallel interface (compatible with most controllers)
- Backlight: White LED or Yellow-Green LED options
- Backlight Life: 50,000+ hours typical
Environmental Specifications:
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
- Operating Humidity: Suitable for industrial environments
- Vibration Resistance: Designed for industrial applications
Mechanical Specifications:
- Module Dimensions: Standard 16×4 LCD footprint
- Mounting Options: Multiple configuration possibilities
- Connector Type: Industry-standard pin configuration
- Weight: Lightweight design for easy integration
Quality & Compliance:
- Compliance: RoHS compliant
- Quality Standard: Manufactured under ISO quality systems
- Testing: 100% electrical testing, sample environmental testing
- Warranty: 2-year standard warranty
Backlight Comparison:
- White LED: Standard choice, excellent contrast, suitable for most applications
- Yellow-Green: Enhanced visibility in certain lighting conditions, lower power consumption
