Product Overview
Elevate your display interface with our 40×2 Character LCD Module, engineered for demanding industrial applications and sophisticated embedded systems. This high-performance display delivers exceptional readability with 40 characters across 2 lines, providing ample space for data visualization, system parameters, and user interface elements. Built to withstand challenging environments, it operates reliably across a wide temperature range while supporting dual voltage inputs for maximum compatibility.
Key Features & Technical Advantages
- High-Density Character Display:
40×2 character format with 3.20×5.55mm character size ensures clear information presentation for complex data display requirements. - Multi-Controller Compatibility:
Supports ST7066U, AIP31066, HD44780, and SPLC780D controllers, offering seamless integration with existing systems and development platforms. - Industrial-Grade Durability:
Operating temperature range of -20°C to 70°C with storage capability up to 80°C, making it suitable for harsh environments including automotive, medical, and industrial controls. - Flexible Power Configuration:
Dual voltage support (3.3V/5V) accommodates both modern low-power microcontrollers and traditional 5V systems without requiring additional voltage regulation. - Optimized Viewing Experience:

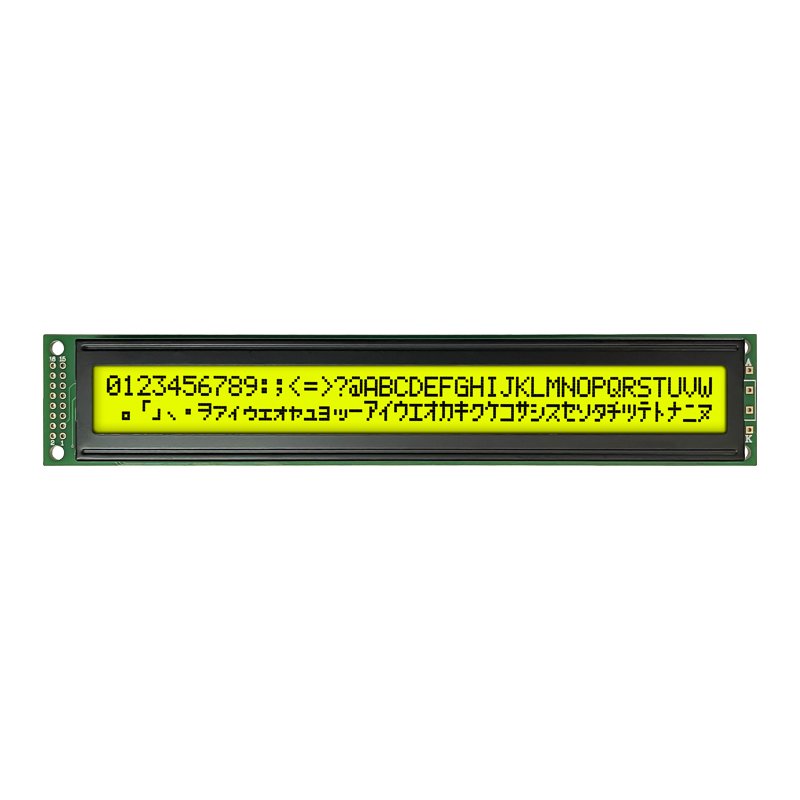

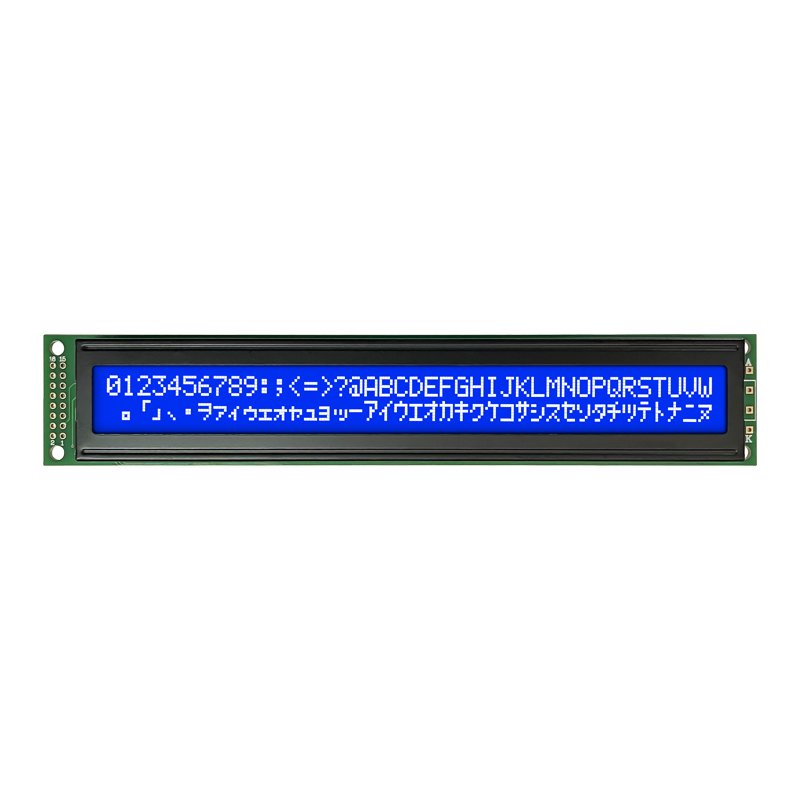

6:00/12:00 viewing direction with FSTN/STN display options (Gray/Yellow-Green/Blue) ensures optimal readability from multiple angles. - Compliance & Reliability:
RoHS certified with COB (Chip-on-Board) IC packaging for enhanced durability and long-term performance stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Format | 40 Characters × 2 Lines |
| Interface | 6800 4-bit / 8-bit Parallel |
| Controller Compatibility | ST7066U, AIP31066, HD44780, SPLC780D |
| Connection Type | Standard Pin Header |
| Dimensions | 182.00(W) × 33.50(H) × 13.50(T) mm |
| Viewing Area | 152.40 × 17.00 mm |
| Character Size | 3.20 × 5.55 mm |
| Display Technology | FSTN/STN with Gray/Yellow-Green/Blue options |
| Viewing Direction | 6:00 / 12:00 |
| Power Supply | 3.3V / 5.0V (Typical) |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Compliance | RoHS Certified |
Target Applications
- Industrial Control Systems: HMI panels, PLC interfaces, and machinery status displays
- Medical Equipment: Diagnostic device interfaces and patient monitoring systems
- Telecommunications: Network equipment displays and communication device interfaces
- Test & Measurement: Laboratory instruments and field testing equipment
- Embedded Systems: Custom electronics, prototyping, and product development
- Automotive Electronics: Diagnostic tools and in-vehicle system interfaces
Why Choose Our 40×2 LCD Module?
- Proven Compatibility: Direct replacement for HD44780-based systems with enhanced ST7066U functionality
- Industrial Reliability: Designed for 24/7 operation in demanding conditions with consistent performance
- Easy Integration: Standard pin header connection and familiar parallel interface minimize development time
- Customization Options: Available in multiple backlight colors (White/Yellow-Green) with potential for OEM customization
- Global Compliance: RoHS certification ensures environmental responsibility and international market access
Package Includes
- 40×2 Character LCD Module
- Standard pin header for immediate integration
- Technical datasheet and integration guide
