🛒 IMMEDIATE PURCHASE OPTIONS
Quick Order Actions:
[✉️ Email: info@thermstarsdisplay.com] | [🛒 Request Samples] | [💰 Get Bulk Order Quote]
Current Stock Status: ✅ IN STOCK – Ships within 24 hours
Display Format: 16 characters × 2 lines (32 total characters)
Minimum Order: 10 pieces (Sample quantities available)
Lead Time: 5~8 days standard delivery | Express 4~7 days available
Payment Terms: T/T, PayPal | Flexible terms for volume orders
Backlight Options: RGB LED / White LED / Yellow-Green LED
Display Modes: STN or FSTN available
Voltage: 3.3V or 5V selectable
Compliance: RoHS Compliant | Industrial Grade
📊 PRODUCT OVERVIEW

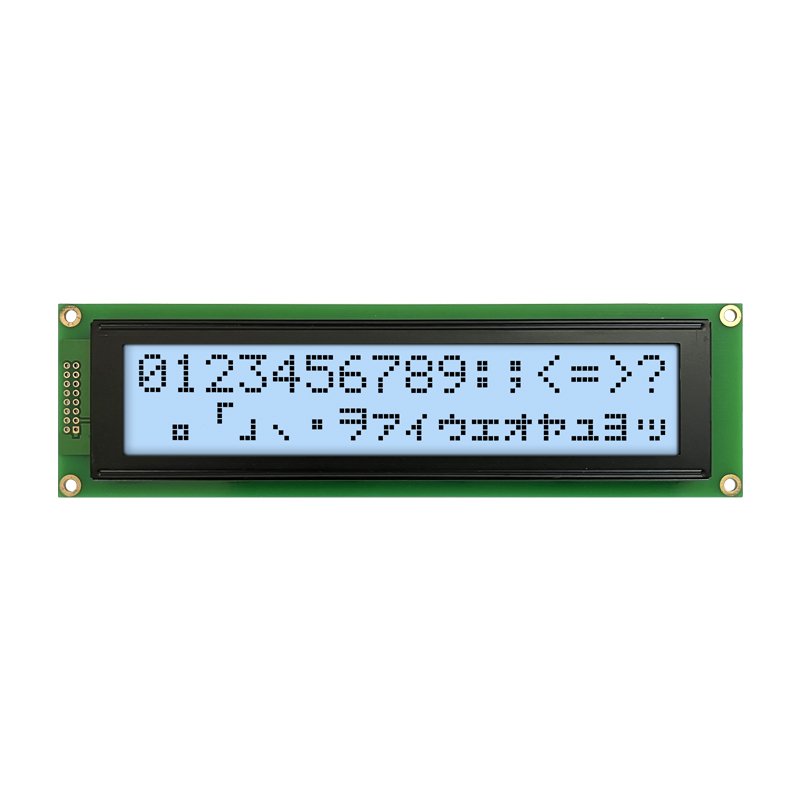

Versatile 16×2 Character LCD Display Module
Thermstars presents the premium 16×2 Character LCD Display Module with multiple backlight and display mode options. This industry-standard format combines versatility with industrial reliability, making it the ideal choice for a wide range of applications requiring clear character display capabilities.
Key Features:
- Standard Format: 16 characters × 2 lines (32 total characters)
- Multiple Backlight Options: RGB LED, White LED, or Yellow-Green LED
- Display Mode Choices: STN (Super Twisted Nematic) or FSTN (Film-compensated STN)
- Wide Temperature Range: -20°C to +70°C operation
- Optimal Viewing: 6:00/12:00 viewing angle for panel mounting
- Dual Voltage: 3.3V or 5V selectable operation
- Industrial Reliability: Built for demanding applications
Display Mode Comparison:
- STN Mode: Standard contrast, cost-effective solution
- FSTN Mode: Higher contrast, wider viewing angle, premium option
- With Backlight: Enhanced visibility in low-light conditions
- Without Backlight: Lower power consumption, sunlight readable option
Backlight Options:
- RGB LED: Multiple color options, programmable for status indication
- White LED: Standard choice, excellent brightness and contrast

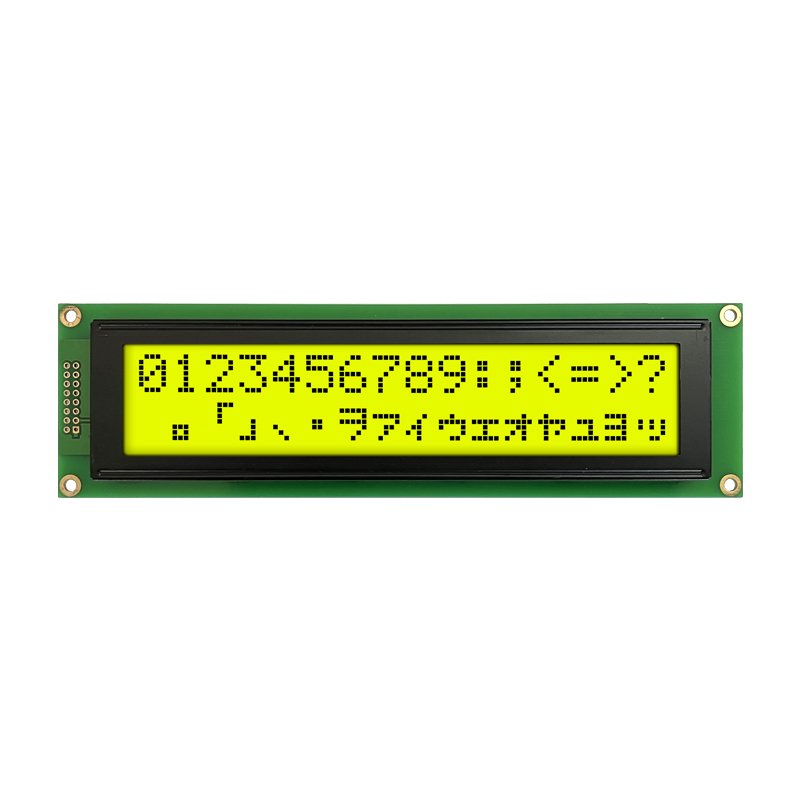

- Yellow-Green LED: Enhanced visibility, lower power consumption
- No Backlight: Cost-effective, sunlight readable
| Manufacturer | Thermstars |
| Part Number | TSCB1602-01 |
| Display Format | 16×2 Character |
| Interface | 6800 4-bit / 8-bit Parallel |
| IC or Equivalent | ST7066U AIP31066 HD44780 |
| Connection | Pin Header |
| Outline Dimension | 80.00(W)x36.00(H)x13.50(T)mm |
| Viewing Area | 64.50×14.50mm |
| Active Area | 55.70×11.00mm |
| Character Size | 2.90×5.15mm |
| IC Package | COB |
| Display Type | FSTN /STN. Gray/Yellow-Green/Blue |
| Viewing Direction | 6:00/12:00 |
| Power Supply(Typ) | 3.3V/ 5.0V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
🔧 TECHNICAL SPECIFICATIONS
Display Specifications:
- Display Type: Character LCD
- Display Format: 16 characters × 2 lines
- Character Structure: 5 × 8 dot matrix

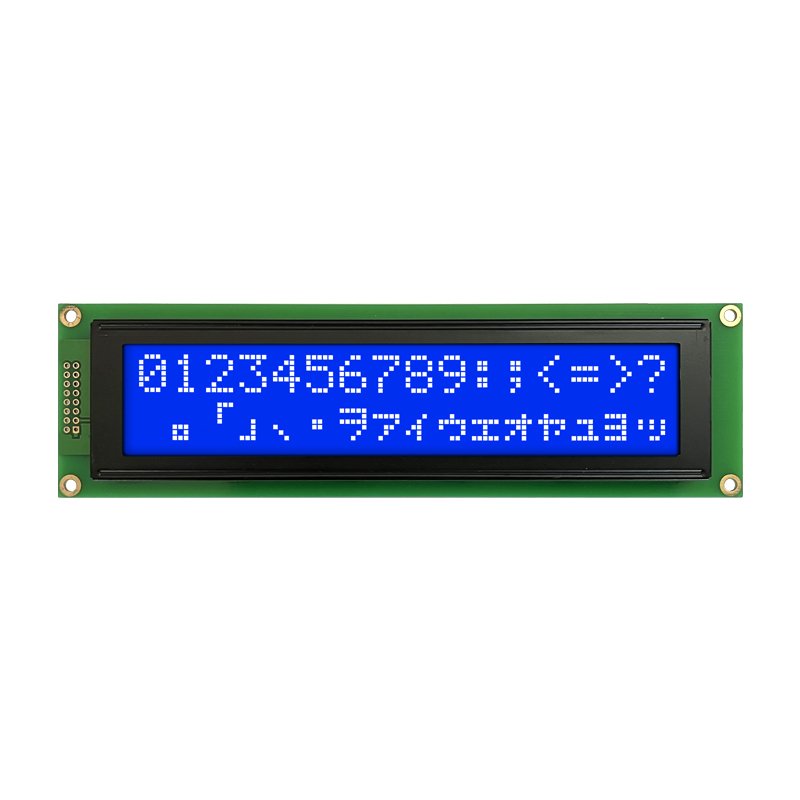

- Display Modes: STN (blue background) or FSTN (gray background)
- Viewing Direction: 6:00/12:00 optimal
- Character Height: Standard 5×8 dot matrix
- Viewing Area: Typically 64.5 × 16.0 mm
Electrical Specifications:
- Supply Voltage: 3.3V or 5V selectable (±10%)
- Operating Current: ≤ 2.0mA (without backlight)
- Backlight Current:
- White LED: ≤ 60mA
- Yellow-Green LED: ≤ 50mA
- RGB LED: ≤ 80mA (combined)
- Interface: Standard parallel interface (compatible with HD44780)
- Controller: Built-in character LCD controller
Backlight Specifications:
- White LED: Standard 6500K white, high brightness
- Yellow-Green LED: 565nm wavelength, enhanced visibility
- RGB LED: Full color programmable, status indication capability
- Backlight Life: 50,000+ hours typical
- Brightness Control: Available with PWM control
Environmental Specifications:
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
- Operating Humidity: 10% to 85% RH (non-condensing)
- Vibration Resistance: 10Hz to 55Hz, 1.5mm amplitude
Mechanical Specifications:
- Module Dimensions: Standard 80.0 × 36.0 × 13.5 mm
- Viewing Area: 64.5 × 16.0 mm
- Weight: Approx. 55g
- Connector Type: Standard pin header (2.54mm pitch)
🏭 INDUSTRY APPLICATIONS & SOLUTIONS
Target Applications:
Industrial Control & Automation:
- PLC interface displays
- Machine control panels
- Equipment status monitors
- Process control interfaces
- [Industrial Control Solutions]
Metering & Measurement:
- Digital panel meters
- Energy consumption displays
- Flow meter interfaces
- Test equipment readouts
- [Metering Display Solutions]
Consumer Electronics:
- Appliance control panels
- Audio equipment displays
- Smart home interfaces
- Security system controls
- [Consumer Electronics Displays]
Medical Equipment:
- Patient monitoring displays
- Diagnostic equipment interfaces
- Medical device status indicators
- Laboratory instrument readouts
- [Medical Display Solutions]
Automotive & Transportation:
- Vehicle information displays
- Diagnostic tool interfaces
- Fleet management systems
- Transportation equipment monitors
- [Automotive Display Solutions]
Retail & Commercial:
- POS system displays
- Kiosk information screens
- Vending machine interfaces
- Digital signage solutions
- [Commercial Display Solutions]
Configuration Recommendations:
For Industrial Control Panels:
- Recommended: FSTN with White LED backlight
- Reason: High contrast, good visibility in control rooms
- Optional: RGB backlight for status indication
For Outdoor Equipment:
- Recommended: FSTN without backlight
- Reason: Sunlight readable, lower power consumption
- Alternative: FSTN with high-brightness white LED
For Battery-Powered Devices:
- Recommended: STN without backlight
- Reason: Lowest power consumption, cost-effective
- Alternative: STN with yellow-green LED (low power)
For Premium Products:
- Recommended: FSTN with RGB backlight
- Reason: Professional appearance, enhanced features
- Benefits: Color customization, status indication
For General Purpose Applications:
- Recommended: STN with white LED backlight
- Reason: Cost-effective, standard solution
- Benefits: Good balance of price and performance
🚀 CUSTOMIZATION SERVICES
Standard Customization Options:
Display Configuration:
- STN or FSTN selection
- Backlight color choice (RGB, White, Yellow-Green, or none)
- Voltage selection (3.3V or 5V)
- Interface options (standard parallel or custom)
Special Features:
- Extended temperature range (-40°C to +85°C available)
- High brightness backlight for sunlight readability
- Dimming control with PWM input
- Custom pinout configurations
Mechanical Customization:
- Private labeling and custom branding
- Custom connector types and positions
- Special mounting configurations
- Protective coatings for harsh environments
OEM Services:
- Volume pricing for production quantities
- Custom packaging with your branding
- Documentation with your company information
- Quality agreements tailored to your requirements
- Supply chain management support
Development Support:
- Technical documentation including datasheets and schematics
- Sample code for various microcontroller platforms
- Application notes for different configurations
- Integration support for complex projects
- Testing guidelines for quality assurance
[🔧 Request Custom Configuration Quotation] | [💡 Discuss Your Application Requirements]
🎯 WHY CHOOSE THERMSTARS 16×2 LCD MODULES?
Supplier Advantages:
- Configuration Flexibility: Multiple backlight and display mode options
- Technical Expertise: Deep understanding of LCD technologies
- Quality Assurance: Rigorous testing and quality control
- Competitive Pricing: Direct factory pricing without middlemen
- Customization Capability: Tailored solutions for specific needs
- Global Experience: Serving international customers worldwide
- Reliable Supply: Regular stock and production capacity
- Support Services: Comprehensive technical support
Technical Support:
- Configuration advice for your specific application
- Technical documentation for all configurations
- Sample evaluation support
- Integration assistance for complex projects
- Application optimization recommendations
Quality Assurance:
- 100% Electrical Testing: Every module tested before shipment
- Display Quality Check: Visual inspection for cosmetic defects
- Backlight Testing: Brightness and color consistency check
- Environmental Testing: Sample testing for temperature performance
- Reliability Testing: Long-term performance validation
