Product Overview
Premium Large-Area Display Solution

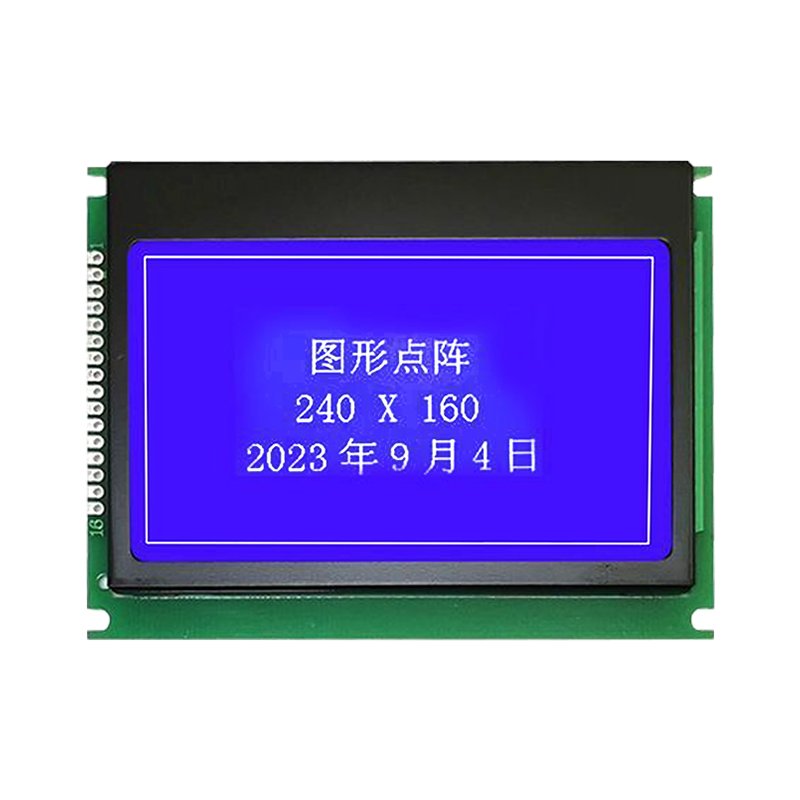

The COG 240×160 Graphic LCD Module delivers expansive visual real estate with industrial-grade reliability through advanced Chip-on-Glass construction. Featuring a generous 240×160 resolution across a substantial 95.97×68.77mm active area, this display is engineered for complex HMI interfaces, medical equipment, and industrial control systems requiring detailed graphics and extensive data visualization. With robust 5V operation and wide temperature tolerance, it sets the standard for professional display applications.
🔥 INDUSTRY-LEADING FEATURES:
- ✅ Large Format Display – 240×160 resolution on 95.97×68.77mm active area
- ✅ Industrial COG Reliability – Chip-on-Glass construction for harsh environments
- ✅ High-Speed 8-bit Parallel – Fast data transfer for complex graphics
- ✅ Dual Backlight Options – White & Yellow-Green for all conditions
- ✅ Wide Temperature Operation – -20°C to +70°C certified
- ✅ Immediate Professional Stock – Ready for critical deployments
Technical Specifications
| Specification | Details |
|---|---|
| Display Format | 240 × 160 graphic pixels |
| Controller Interface | 8-bit Parallel (Industry Standard) |
| IC Package | COG (Chip-on-Glass) |
| Backlight Options | White LED / Yellow-Green LED |
| Connection | Industrial Pin Header |
| Display Type | FSTN / STN (Gray/Yellow-Green/Blue) |
| Viewing Direction | 6:00 / 12:00 optimal |
| Power Supply | 5.0V (Industrial Standard) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Outline Dimensions | 143.00(W) × 96.80(H) × 11.80(T) mm |
| Visual Area | 104.00 × 79.40 mm |
| Active Area | 95.97 × 68.77 mm (Large Format) |
| Pixel Size | 0.37 × 0.37 mm (Optimal Resolution) |
| Pixel Pitch | 0.40 × 0.40 mm |
| Total Pixels | 38,400 addressable pixels |
| Module Construction | Industrial-grade COG package |
| Current Consumption | Display: <25mA, Backlight: 40-80mA |
| Parallel Interface Speed | Up to 8MHz data transfer |
| Resolution Density | ~65 PPI (Pixels Per Inch) |
| Contrast Ratio | Minimum 1:12 |
| Response Time | <300ms typical |
| Compliance | RoHS Compliant |
Key Features
1. Advanced Large-Format COG Technology
- Substantial Active Area: 95.97×68.77mm provides exceptional display real estate
- Industrial-Grade Construction: COG technology eliminates connector failures
- Enhanced Mechanical Stability: Superior resistance to vibration and thermal stress
- Optimized Optical Performance: Minimal parallax, excellent viewing angles
- Professional Mounting: Designed for industrial panel integration
2. High-Performance Display Capabilities
- Generous 240×160 Resolution: 38,400 pixels for detailed graphics and data
- Large Pixel Structure: 0.37mm pixels ensure excellent readability
- Multiple Display Modes: FSTN/STN with color options for specific applications
- Wide Viewing Angles: Optimized for 6:00 and 12:00 operator positions
- Fast Graphic Rendering: Suitable for complex interfaces and real-time data
3. Industrial 8-bit Parallel Interface
- High-Speed Data Transfer: 8-bit parallel interface for rapid screen updates
- Industry Standard Protocol: Compatible with industrial controllers and PLCs
- Robust Pin Header Connection: Secure industrial-grade interface
- Easy Integration: Standard interface timing and control signals
- Legacy System Compatibility: Drop-in replacement for older displays
4. Professional Industrial Performance
- Extended Temperature Range: Certified -20°C to +70°C operation
- 5V Industrial Standard: Direct compatibility with industrial power systems
- High Brightness Options: Available for high-ambient light environments
- Long Operational Life: 100,000+ hours MTBF for continuous operation
- EMI/RFI Optimized: Designed for industrial electromagnetic environments
Competitive Advantages (Industrial Leadership)
🎯 FOR INDUSTRIAL HMI SYSTEMS:
- Largest COG display available – Maximum information display
- Industrial temperature certified – Factory floor ready
- 8-bit parallel interface – Fastest industrial communication
🎯 FOR MEDICAL EQUIPMENT:
- Large 95.97×68.77mm area – Perfect for diagnostic displays
- Yellow-Green medical option – Reduced eye strain for clinicians
- COG reliability – Critical for medical device certification
🎯 FOR PROFESSIONAL INSTRUMENTATION:
- High resolution graphics – Detailed data visualization
- Industrial construction – Withstands laboratory and field use
- Standard 5V operation – Easy integration with existing systems
Best-Selling Professional Configurations
INDUSTRIAL-GRADE MODELS:
- Model COG-240160-IND – Industrial HMI version, White backlight, FSTN Gray
- Model COG-240160-MED – Medical grade, Yellow-Green backlight, STN Yellow-Green
- Model COG-240160-PRO – Professional instrument, White backlight, FSTN Blue
- Model COG-240160-HB – High Brightness, 1000+ cd/m², outdoor capable
STOCK & PROFESSIONAL AVAILABILITY:
- ✅ CORE MODELS IN STOCK – Immediate professional shipment
- ✅ 24-hour emergency dispatch – Critical replacement support
- ✅ High-volume manufacturing – Support for large-scale OEM projects
- ✅ Custom industrial configurations – Available from 200 units MOQ
Target Applications
🏭 Industrial Automation & Control (PRIMARY)
- Advanced HMI interfaces for manufacturing systems
- SCADA operator workstation displays
- Industrial process visualization screens
- Factory automation monitoring displays
⚕️ Medical & Diagnostic Equipment
- Patient monitoring system displays
- Medical imaging equipment interfaces
- Diagnostic analyzer screens
- Surgical equipment control panels
🔬 Scientific & Laboratory Instruments
- Research equipment data displays
- Laboratory analyzer interfaces
- Test and measurement equipment
- Scientific visualization systems
🏢 Commercial & Professional Systems
- Professional audio/video equipment displays
- Telecommunications network monitoring
- Broadcast equipment interfaces
- Professional control room displays
🚗 Transportation & Heavy Equipment
- Vehicle diagnostic system displays
- Heavy machinery operator interfaces
- Fleet management control panels
- Transportation system monitoring
