High-Performance 88128-13 LCD: Engineered for Mobility & Durability
The compact, low-power 88×128 dots graphic display designed to survive harsh field environments.
Ultra-Low Power: Extends battery life by 40%
Sunlight Readable: FSTN Transflective Technology
Compact Form Factor: Optimized for Ergonomic Handheld Design
Fast Delivery: Samples shipped in 48 Hours
Built for the Field, Designed for the Hand
The LCM88128-13 is the standard choice for engineers building the next generation of portable industrial tools.
- Industrial Testers: Ideal for Gas Detectors, Multimeters, and Cable Testers.
- Portable Medical Devices: Clear UI for blood glucose monitors and heart rate trackers.
- Logistics & Warehousing: High-speed display for rugged barcode scanners.
- Field Surveying: High-contrast output for GPS trackers and laser levels.
LCM88128-13 vs LCM88128-14: Choose the Right 88128 LCD for Your Meter Project
In the world of Smart Energy Meters and Industrial IoT, the 88128 series (88×128 pixels) is a legendary choice. However, procurement and engineering teams often ask: What is the real difference between the -13 and -14 versions?
This guide breaks down the technical nuances to help you optimize your BOM cost and ensure PCB compatibility.
1. The Core Differences at a Glance
While both modules share the same resolution, the devil is in the details—specifically the Physical Dimensions and FPC (Flexible Printed Circuit) Design.
| Feature | LCM88128-13 | LCM88128-14 |
| Common Application | Compact Single-Phase Meters / Handhelds | Three-Phase Meters / Large Industrial Panels |
| Typical FPC Position | Usually Bottom or Side-entry | Standard Bottom-entry |
| View Area (VA) | Slightly narrower for slim housings | Standard wide-view area |
| Pin Definition | Often optimized for SPI (low pin count) | Often supports both Parallel and SPI |
| Mounting Style | Ideal for Vertical mounting | Standard Horizontal or Vertical |
2. When to Choose LCM88128-13?
The LCM88128-13 is the “Space-Saver.” It is specifically designed for projects where the front panel area is premium.
- Compact Meter Designs: If you are designing a slim, single-phase DIN-rail meter, the -13 version offers the most efficient footprint.
- Low Power Focus: Often paired with ultra-low-power driver ICs (like ST7567), making it the go-to for battery-operated handheld testers.
- High-Density UI: Best for displaying vertical bar graphs alongside numerical energy data.
3. When to Choose LCM88128-14?
The LCM88128-14 is the “Industry Standard.” It is widely recognized by state grid suppliers (like WAPDA) for its robustness.
- Government Tenders: If your project must strictly follow legacy hardware footprints used in three-phase prepaid meters, the -14 is likely the exact pin-to-pin replacement you need.
- Enhanced Readability: Typically offers a slightly larger active area, making it easier for field technicians to read meter data from a distance.
4. Critical Sourcing Checklist for Both Models
Regardless of which version your PCB requires, for the Pakistan and Indian markets, you must verify:
Duty-Free Advantage: Check if your supplier provides Form FTA (China-Pakistan Free Trade Agreement) to reduce your landed cost by up to 20%.
1. Sunlight Readability (Outdoor Performance)
Operating Temperature: Ensure your supplier provides Industrial Grade (-20°C to +70°C).
Sunlight Readability: Demand FSTN Transflective technology; otherwise, the screen will “wash out” in the harsh South Asian sun.
In the field, glare is the enemy. Our LCM88128-13 utilizes FSTN Transflective technology. Unlike standard screens that wash out under the sun, our display uses ambient light to increase contrast, ensuring crystal-clear readability even in desert or high-altitude environments.
2. Extreme Battery Efficiency (Power Management)
For handheld devices, every milliamp counts. Our COG (Chip-on-Glass) architecture and optimized LED backlighting system significantly reduce power consumption, allowing your devices to run days longer on a single charge.
3. Rugged & Compact Design

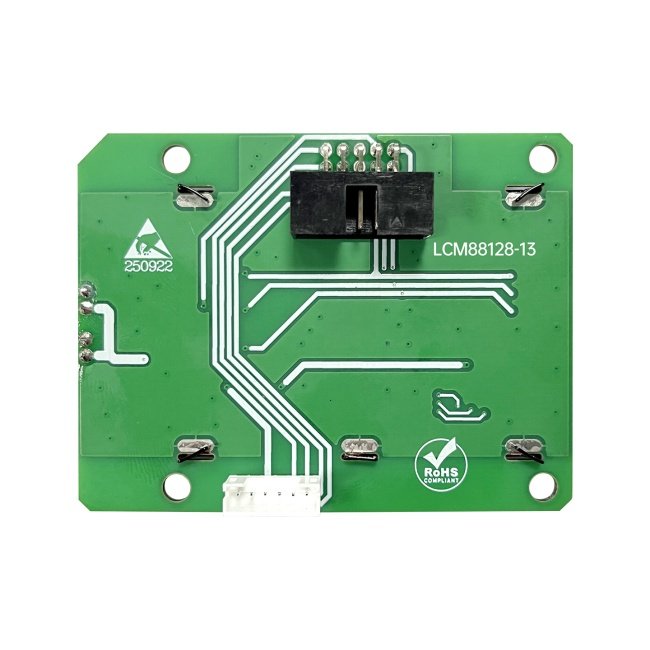

Handheld tools face drops and vibrations. The -13 version features a reinforced FPC and a slim mechanical profile, allowing it to fit into ergonomic, shock-proof housings without sacrificing display area.
| Feature | Specification | Engineering Benefit |
| Model | LCM88128-13 (Industrial Grade) | Standardized for global sourcing. |
| Resolution | 88 x 128 Dots | Sharp graphics for icons and data. |
| Interface | 4-Line SPI / I2C | Saves MCU pins for other sensors. |
| Operating Temp | -20°C to +70°C | Flawless performance in cold or heat. |
| Power Supply | 3.0V / 3.3V | Compatible with standard Li-ion batteries. |
| Driver IC | ST7567 or UC1701 | Easy integration with free demo code. |
Q: Can I customize the FPC length for my specific handheld housing? A: Yes! We offer OEM/ODM services to customize the FPC shape and pinout to match your ergonomic requirements.
Q: Is it easy to integrate with an Arduino or STM32? A: Absolutely. We provide a full technical datasheet and C-language initialization code to help you complete prototyping in hours.
Q: Do you support small batch orders for prototyping? A: Yes, we understand R&D needs. We support small trial orders and keep samples in stock for immediate testing.
Key Question: Is LCM88128-13 suitable for outdoor handheld devices?
- Answer: Yes, the LCM88128-13 uses FSTN Transflective technology, making it sunlight readable and highly visible in outdoor environments. Its compact COG design and low power consumption make it the ideal display for battery-operated industrial testers.
Key Question: Can I get a duty-free price for LCM88128-13 in Pakistan?
- Answer: As a verified China manufacturer, we provide Form FTA (China-Pakistan Free Trade Agreement), allowing buyers in Pakistan to import LCM88128-13 modules with zero or significantly reduced customs duties.
